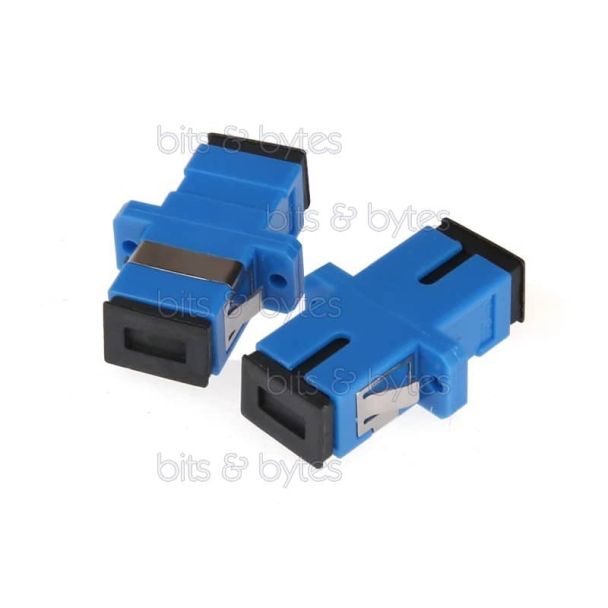

Fiber Optic SC Simplex Socket Single-Mode Adapter (Extension Coupler)

Description

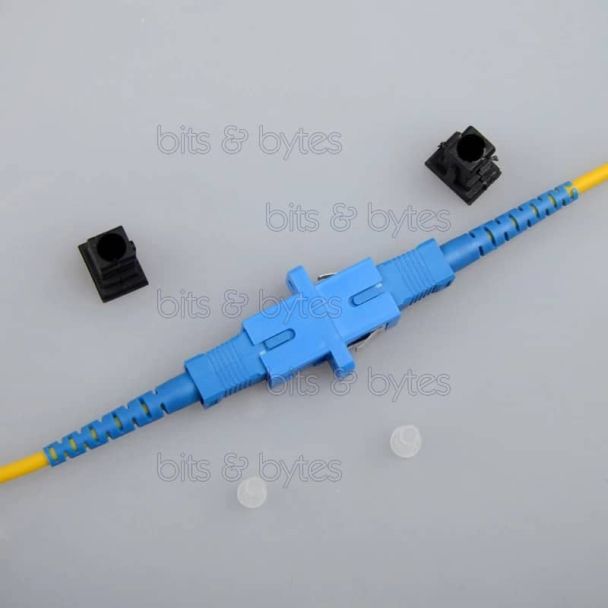

With this SC Simplex coupling, optical fiber male connectors can be easily connected to each other. The coupling enables a direct connection to the optical fiber cable and is suitable for simple mounting in optical fiber connection boxes, cabinets and patch panels.

Protection by dust cover

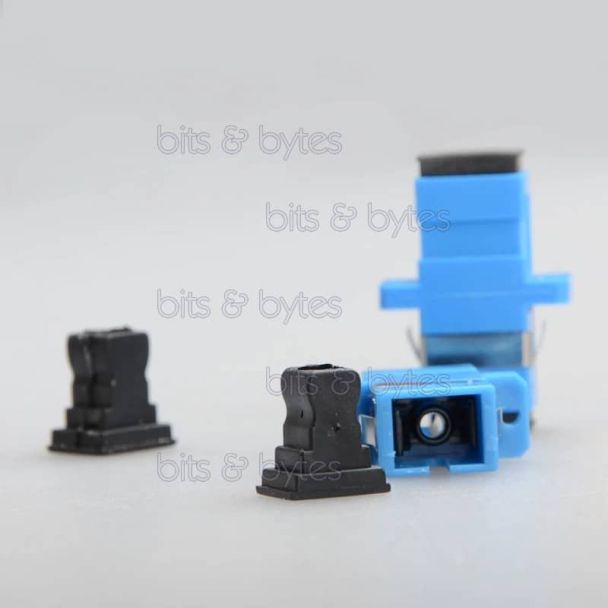

The coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean when are not in use.

Specification

• Connectors: 1 x SC Simplex female > 1 x SC Simplex female
• For single-mode fiber
• With dust cover
• Mounting via holder or screws
• 2 x mounting holes
• Mounting hole diameter: 2.4 mm
• Pitch of screw hole: ca. 18 mm
• Panel cut-out (WxH): ca. 13.4 x 9.5 mm
• Operating temperature: -20 °C ~ 70 °C
• Material: plastic
• Dimensions (LxWxH): ca. 27.4 x 12.7 x 9.3 mm
• System requirements: A free SC Simplex male port
• Package content: SC Simplex coupler
