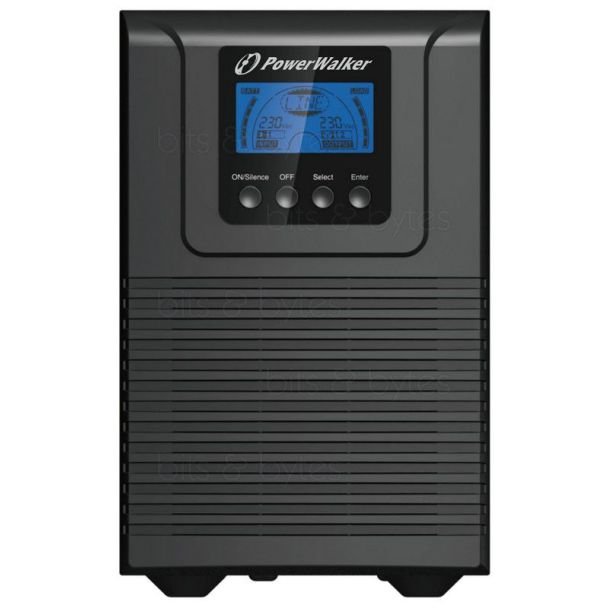

PowerWalker VFI 1000 TGB UK 1000VA (900W) Online UPS

PowerWalker VFI 1000 TGB UK 1000VA (900W) Online UPS

Name: PowerWalker VFI 1000 TGB UK 1000VA (900W) Online UPS
SKU: 300005
Price: 332.512201 EUR
Availability: OutOfStock

Out of stock

SKU

300005

Be the first to review this product

€332.51

Notify me when this product is in stock

Online technology with Power Factor 0.9

The PowerWalker VFI TGB is a professional and versatile online UPS solution for almost all single-phase applications.

The UPS also has a connection for external battery packs for extended autonomy time. And thanks to the double converter technology, the UPS offers the best protection for sensitive systems. Additionally, the functionality is enhanced by the variety of communication options, such as HID, software or network cards.

High-efficiency results in energy saving with output power factor 0.9
Human Interface Device (HID) compatible USB connection (no additional drivers needed)
Wide input voltage range for all environments and support for AC generator
Available with integrated batteries

General Features

Type	Online
Power Capacity	1000VA / 900W
Output Power Factor	0.90

Input

Input Voltage Range	176-300 VAC or 80x285 VAC in bypass mode
Max THDi	≤5%
Input PF	≥ 0.99 at full load
Frequency Range	40Hz - 70Hz
Frequency (Synchronized Range)	45Hz - 55Hz or 54Hz - 66Hz

Output

Nominal Output Voltage	220/230/240 VAC
Pure Sine Wave	Yes
THDv	≤2% Full Linear Load ≤5% Non-Linear Load
Voltage Regulation (Battery Mode)	±2%
Frequency (Battery Mode)	±0.05Hz

Technical Details

Load Crest Ratio	3:1
Transfer Time [AC to Battery]	0ms
Transfer Time [Inverter to Bypass]	4ms
Generator support	Yes
Overload Capacity	Line: constant @100%-105% 1min @105%-130% 10s @130%-150% 300ms @>150% bypass at higher BAT: 10s @100%-150% cut-off at higher
Charger	1.5A
Fan Logic	Always-ON Low speed: bypass/ECO or line mode with a load below 70% High speed: Battery mode or line mode with load above 70%

Efficiency

LINE mode full Load

89.0%

Batteries and autonomy time

Batteries	2x 12V/9Ah
DC Voltage	2 x 12V
Recharge Time	4h to 90%
Full Load Backup Time	3.7min
Half Load Backup Time	10.5min

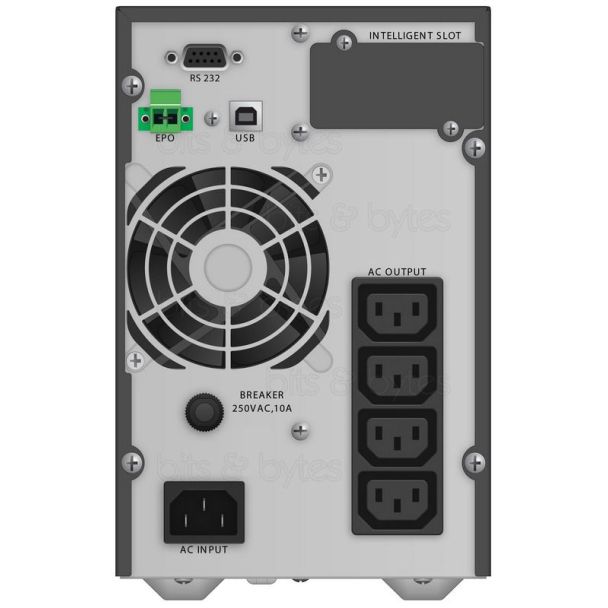

Connections and communication

IEC C13 Outlet	4
Input	C14-UK
Software	WinPower
USB port	Yes
HID Support	Yes
RS-232 Port	Yes
Extension Slot	Yes - 1 slot
EPO Port	Yes

Logistics

IEC 62040-3 classification	VFI-SS-311
Package Content	UPS Manual USB Cable Input Power Cable 2x IEC Cable
EAN	4260074979367
Dimensions (WxHxD)	144 x 229 x 356 mm
Weight	9.3 Kgs
