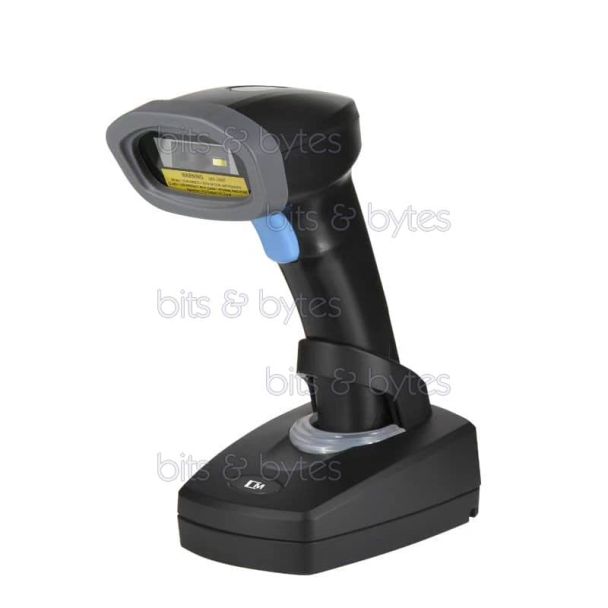

WNI-8014PB/Z
2D CMOS Handheld Bluetooth or 2.4 GHz Wireless Barcode Scanner With Base
Technical Specifications
- Wireless Transmission Mode: Bluetooth 4.0 or 2.4GHz Wireless base (USB connection)
- Transmission range: ≤30M (In empty area)
- Battery capacity: 2000mAh
- Communication mode:
- Bluetooth: Read-time mode / Inventory mode / Cache mode
- 2.4GHz Base: Receiver Mode
- Charging Time from Empty to Full Charge: 5 Hours
- Life time of a full charge:
- 6h (continuous reading situation)
- 12h (Manual reading situation)
- More than 15 days (Stand-by time)
- Memory: Accumulated 5000 ~ 100,000 barcode data (512,000 Bytes)
Electrical Characteristics
- Interface: USB HID KEYBOARD/USB VCP
- Voltage requirement: 5VDC±5%
- Current consumption: 180mA (max)
Optical Characteristics
- Light Source: 1x White LED
- Sensor Resolution: 640X480 Pixels Â
Performance Characteristics
- Decode Capability:
- 1D Barcodes: UPC/EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI, GS1 Databar, etc.
- 2D Barcodes: Airline 2 of 5, Aztec Code, Data Matrix, Grid Matrix Code, Â GS1 Composite Codes, Maxi Code, PDF417, QR Code, etc.
Depth of field
| Symbology | Resolution (mm) | Depth of Field (mm) |
| Code 39 | 5.0 mil | 50mm -- 120mm |
| 15.0 mil | 40mm -- 250mm | |
| UPC / EAN | 15.0 mil | 40mm -- 250mm |
| Data Matrix | 10.0 mil | 40mm -- 210mm |
Physical Characteristics
- Dimensions:
- Scanner: 85mm x 37mm x 25mm (LxWxH)
- Base: 145mm x 112mm x 74mm (LxWxH)
- Weight:
- Scanner: 186g
- Base: 172g
- Colour: Black
- Material: ABS+PC
- IP Grade: IP 42
Environmental Characteristics
- Temperature:
- Operation: -10°∽60°C
- Storage: -20°∽60°C
- Humidity: 5 - 90%
- Ambient Light: 0 ~ 100,000 lx
- Shock Drop Test: 1.5m drop onto concrete surface
Regulatory
- Electrical Safety:
- UL 60950
- EN/IEC 60950
- EMI/RFI:
- FCC Part 15 Class B
- EN 55024/CISPR 22
- Environmental: RoHS
| Colour | n/a |
|---|
